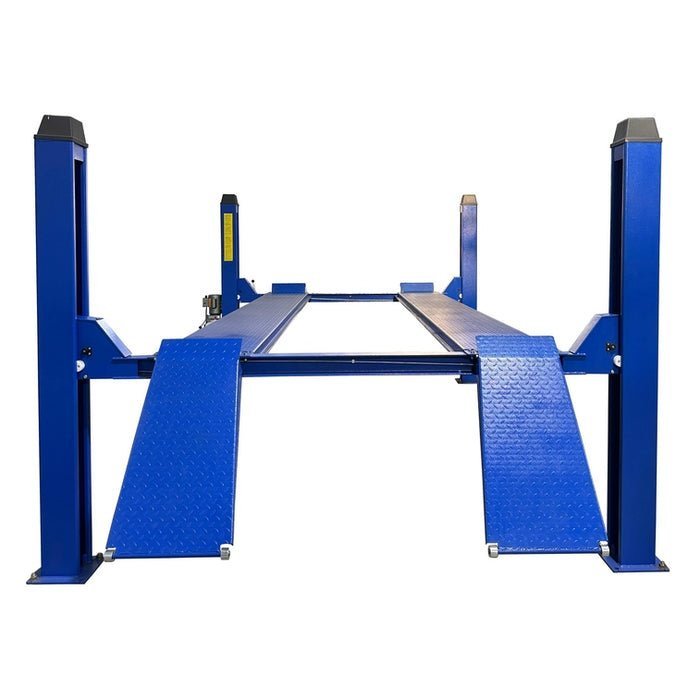

Tuxedo FP12K-K 12,000 lb Four Post Lift – Cable Driven

Tuxedo 12,000 lb Four Post Lift – Cable Driven

–

*Jack sold separately

Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks.

Features

–

12,000 lbs Capacity
Cable Driven
176 max wheelbase

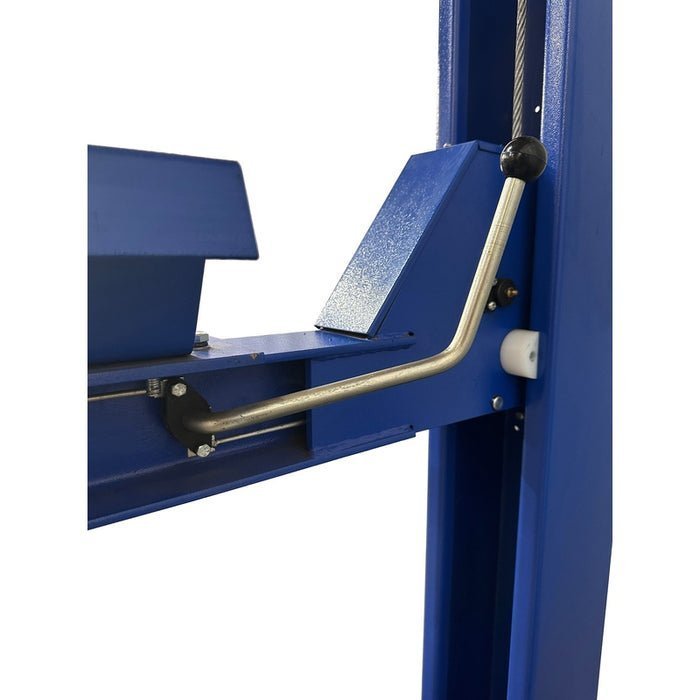

Single Point Manual Lock Release
Adjustable Locking Positions
Slack Cable Safety
No Overhead Obstructions
Powder Coat Finish

Specifications

–

Lift Model	FP12K-K
Capacity	12,000 lbs.
Overall Length w/Ramp	232-1/2″
Overall Width(Without Power Unit)	123″
Overall Width (With Power Unit)	134″
Overall Height	84″
Max Rise Height	67-1/2″
Min Height	7″
Width Between Posts	105″
Length Between Posts	177″
Width Between Runways	36-1/2″
Width Of Runways	19″
Max Wheelbase	167″
Ramp Length	35″
Max. Clearance Under Runway	63-1/4″
Drive-Thru Clearance	87-1/2″
Base Plate	11″ X 11″
Power Requirement	220V – 20 Amp – 1PH
Ship Weight	2,255 lbs.
Min Bay Size	15″ x 23″
