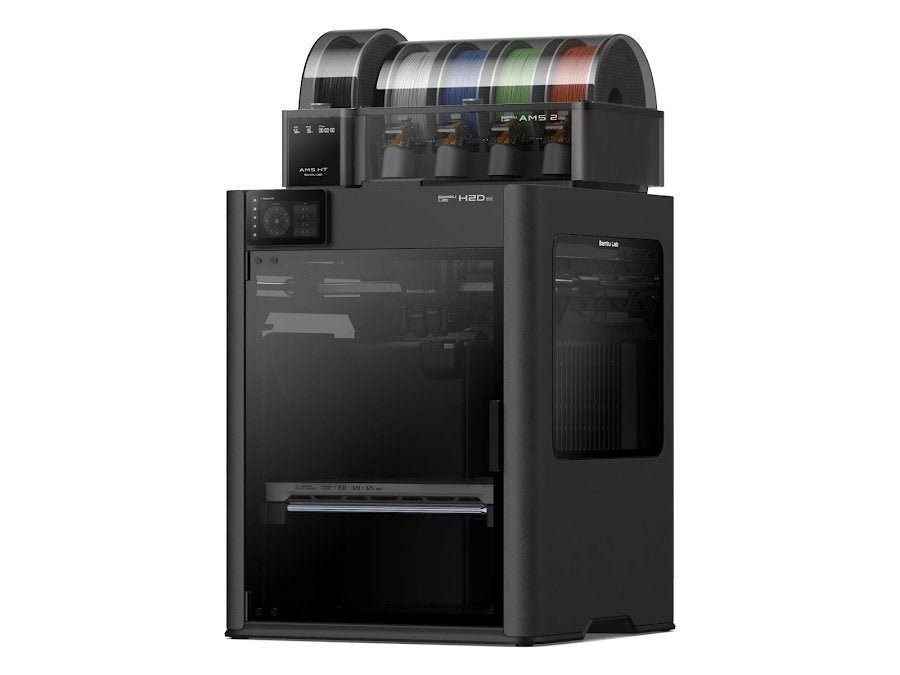

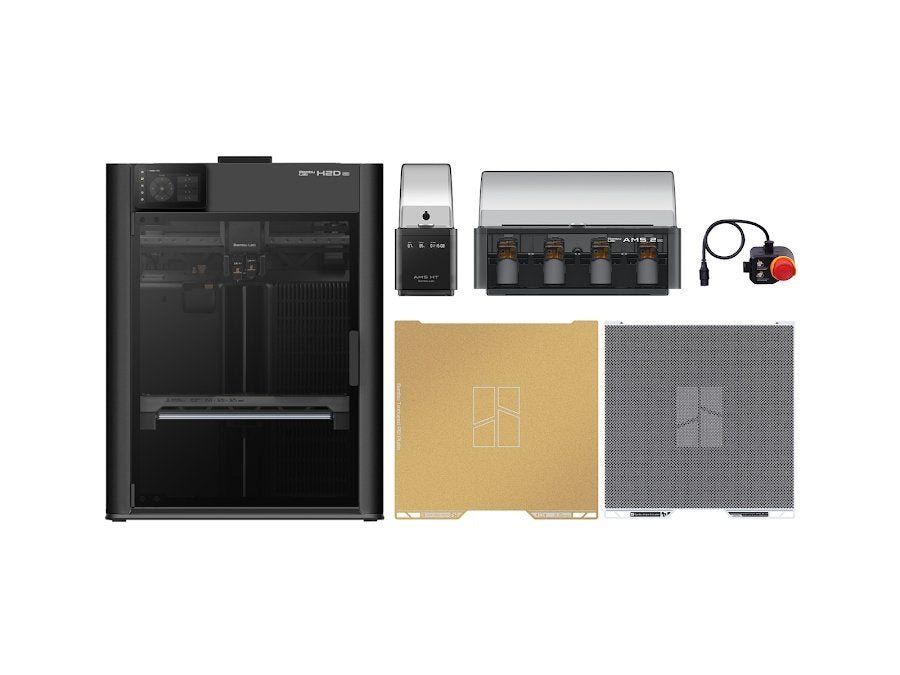

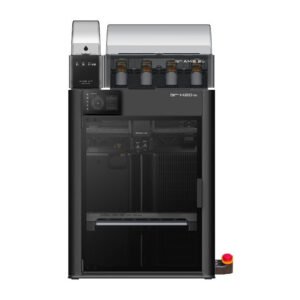

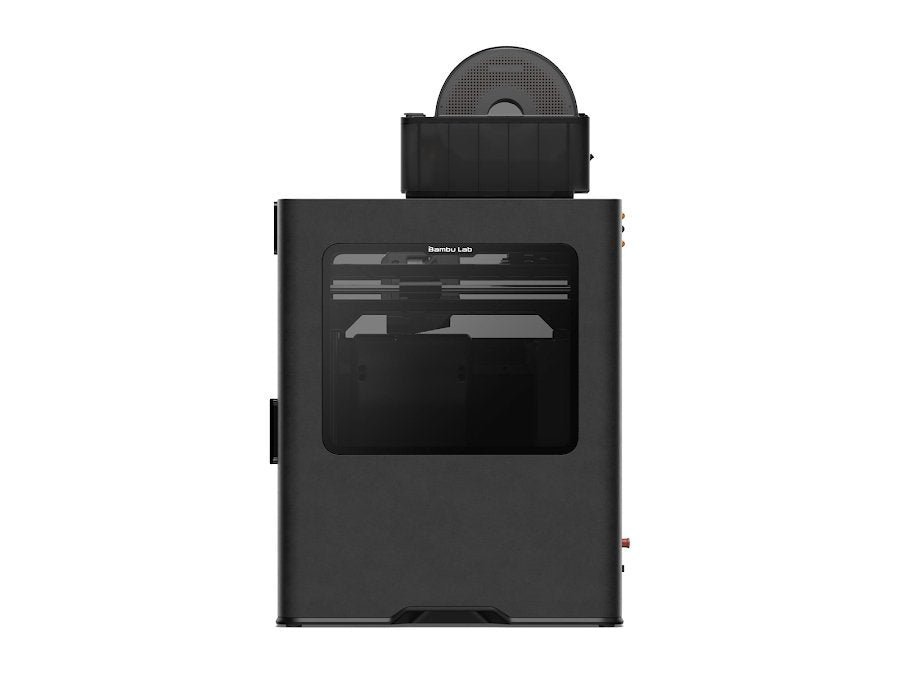

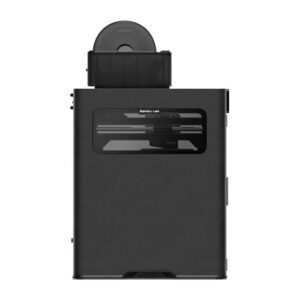

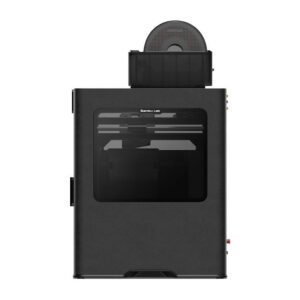

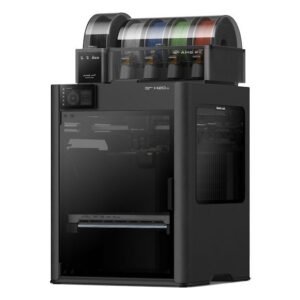

Bambu Lab H2D 3D Printer

Experience superior production results with the Bambu Lab H2D Pro 3D Printer—engineered for professionals who demand quality, security, and reliability. Unlock advanced high-temperature material versatility, seamless enterprise integration, and increased productivity with outstanding print quality. Featuring a 350°C dual-nozzle system, secure Ethernet and WPA2-Enterprise connectivity, Vision Encoder Calibration, and more, the H2D Pro empowers your organization to achieve exceptional 3D prints with confidence and efficiency.
Key Features of the Bambu Lab H2D Pro 3D Printer:

350°C dual-nozzle system for advanced material versatility

Tungsten carbide nozzle for exceptional durability and lifespan

65°C heated chamber ensures strong, warp-free prints
Secure Ethernet and WPA2-Enterprise Wi-Fi connectivity options

Physical network killswitch meets strict enterprise security standards

Included Vision Encoder delivers ultra-precise 50µm motion accuracy
Adaptive air circulation and HEPA filtration for safer environment operation

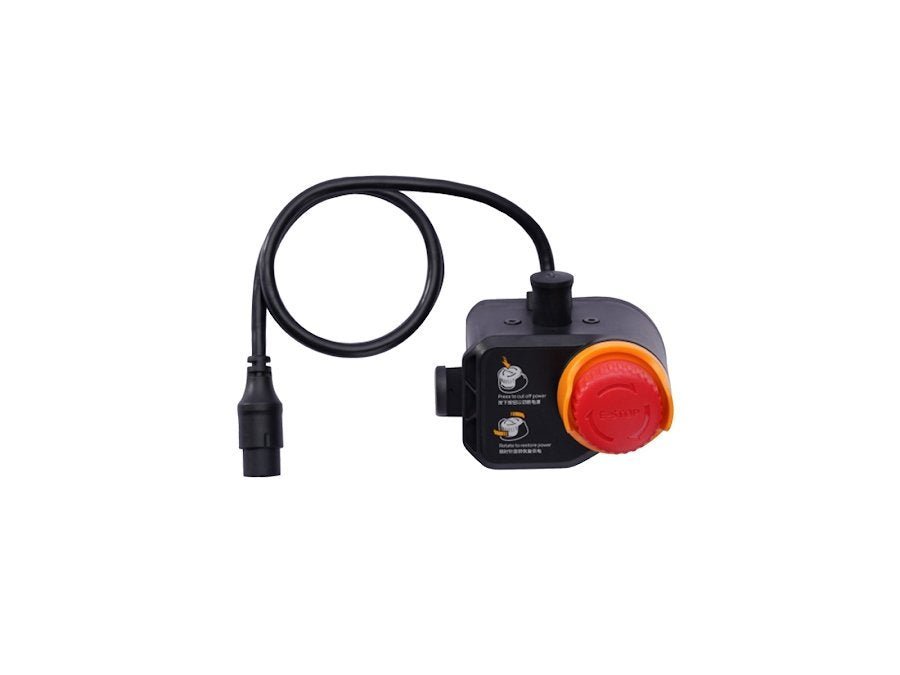

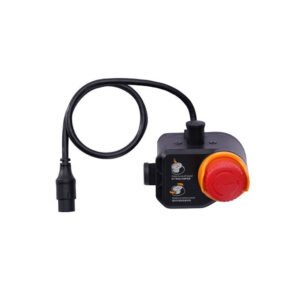

Includes an emergency button to meet industrial safety requirements

SPECIFICATIONS

GENERAL

Technology
Fused Deposition Modeling (FDM)

Motion System
CoreXY

Assembly
Fully-Assembled

Made in
China

MACHINE DIMENSIONS

Outer Dimensions (w/o AMS)* (L × W × H)
492×514×626mm (19.4″×20.2″×24.6″)

Net Weight (w/o AMS)**
31kg (68.4lb)

PRINTING PARAMETERS

Build Volume (L × W × H)
SINGLE Extrusion 325mm × 320mm × 325mm (12.79″×12.59″×12.79″)
DUAL Extrusion 300mm × 320 × 325mm (11.81″×12.59″×12.79″)
Total Volume for Two Nozzles 350mm × 320mm × 325mm (13.77″×12.59″×12.79″)

Filament Diameter
1.75mm

Extrusion
Dual Extrusion

Extruder Motor
Bambu Lab High-precision Permanent Magnet Synchronous Motor

Extruder Gear
Hardened Steel

Hotend
All-Metal

Nozzle Material
Tungsten Carbide Nozzle

Max. Nozzle Temperature
350°C

Nozzle Size
0.4mm

Max Build Plate Temperature
120°C

Build Surface
Flexible Textured PEI Plate
OPTIONAL Smooth PEI Plate

Max Toolhead Speed
1000mm/s

Max Toolhead Acceleration
20,000mm/s²

Max Flow Rate (Standard Flow Hotend)
40mm³/s*

Active Chamber Heating
Supported

Max Chamber Temperature
65°C

Pre-Filter Grade
G3

HEPA Filter Grade
H12

AIR PURIFICATION

Activated Carbon Filter Type
Granulated Coconut Shell

VOC Filtration
Superior

Particulate Matter Filtration
Supported

COOLING

Part Cooling Fan
Closed Loop Control

Cooling Fan for Hotend
Closed Loop Control

Main Control Board Fan
Closed Loop Control

Chamber Exhaust Fan
Closed Loop Control

Chamber Heat Circulation Fan
Closed Loop Control

Auxiliary Part Cooling Fan
Closed Loop Control

PRINTER FEATURES

Enclosed
Yes—Plastic & Glass

Frame
Aluminum and Steel

Filament Cutter
Built-In

Build Plate
Magnetic, Flexible

Bed Leveling
Fully-automated

Emergency Button
✓

Swappable Nozzle System
✓

Power Loss Recovery
✓

CAMERA(S)

Live View Camera
Built-in; 1920 × 1080

Nozzle Camera
Built-in; 1920 × 1080

BirdsEye Camera
Built-in; 3264 × 2448

Toolhead Camera
Built-in; 1920 × 1080

SENSOR(S)

Door Sensor
Supported

Filament Runout Sensor
Supported

Filament Tangle Sensor
Supported

Filament Odometry
Supported with AMS

COMPATIBLE MATERIALS

Third-Party Filament
Yes***

Supported
PLA, PETG, TPU, PVA, BV OH, ABS, ASA, PC, Nylon / PA, PET, PPS, PPA, and Carbon/Glass Fiber Reinforced Filament variants of the previously listed materials

COMMUNICATION

Display
5″ Capacitive Touch Screen

Display Resolution
720 × 1280

Storage
Built-in 8 GB EMMC and USB Port

Control Interface
Touchscreen, mobile App, PC App

Motion Controller
Dual-core Cortex-M4 and Single-core Cortex-M7

Applicator Processor
Quad-core 1.5 GHz ARM A7

Neural Processing Unit
2 TOPS

NETWORK CONTROL

Connectivity
Wi-Fi, Ethernet

Network Kill Switch
Wi-Fi & Ethernet

Wi-Fi Frequency Range
2400 MHz – 2483.5 MHz

Wi-Fi WPA2-Enterprise
EAP-PEAP EAP-TLS TAP-TTLS

Wi-Fi Transmitter Power (EIRP)
≤ 21.5 dBm (FCC) ≤ 20 dBm (CE/SRRC)

Wi-Fi Protocol
IEEE 802.11 b/g/n

Ethernet Socket
RJ45

Ethernet Speed
100 Mbps / Full Duplex

Removable Network Module
Yes

802.1X Network Access Control
Yes

SOFTWARE

Slicing Software
Bambu Studio
Supports third-party slicers which export standard G-code (i.e. Super Slicer, PrusaSlicer and Cura, etc.), but certain advanced features may not be supported.

Compatible OS
Windows, MacOS

Supported File Format(s)
STL, 3MF

POWER REQUIREMENTS

Input Voltage
100 – 120 VAC / 200 – 240 VAC, 50/60 Hz

Max Power**
1320 W@110 V 2200 W@220 V

Average Power
1050 W@110 V 1050 W@220 V
