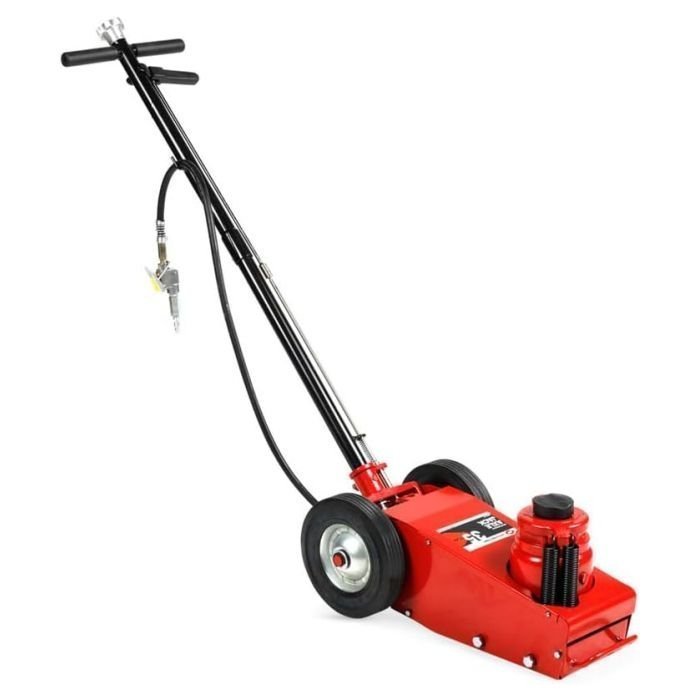

AFF 35-Ton Air Hydraulic Axle Jack

Product details

American Forge & Foundry’s 35-ton Single-Stage Air Hydraulic Axle Jack is a heavy-duty axle jack built tough for the rigors of the heavy-duty trucking, agricultural, and fleet business. Features include a precision machined pump, ram, and cylinders; corrosion-resistant aluminum and nylon composite air motor, air-assisted lowering and dual return springs, large rear wheels, and a safety overload system. Includes 2-piece handle, and 3 heat-treated extensions.

Features

• Pump, Ram, And Cylinders Are Precision Machined And Inspected To Ensure Long Service Life And Superior Performance
• Corrosion Resistant Aluminum And Nylon Composite Air Motor
• Unique Motor Design Advances Ram To Load Faster For Quick And More Efficient Operation
• Air Assisted Lowering And Dual Return Springs Provide Controlled And Easy Descent
• Large 8-5/8″ Rear Wheels For Easy Positioning And Smooth Motion
• Safety Overload System Prevents Jack From Being Used Beyond Its Rated Capacity
• Operates At 90-180 PSI
• Includes 3 Heat Treated Extensions (3/4″, 2-3/4″, And 4″) For A Wide Range Of Lifting Options
• Includes 2 Piece Handle

Specifications

• Capacity: 35-Ton
• High Height: 23″
• Low Height: 10-5/8″
• Ram Lift: 4-1/2″
• Reach: 58″
• Width: 12-1/2″
• Shipping Weight: 110 lbs.
• Warranty: (3) Year Limited
