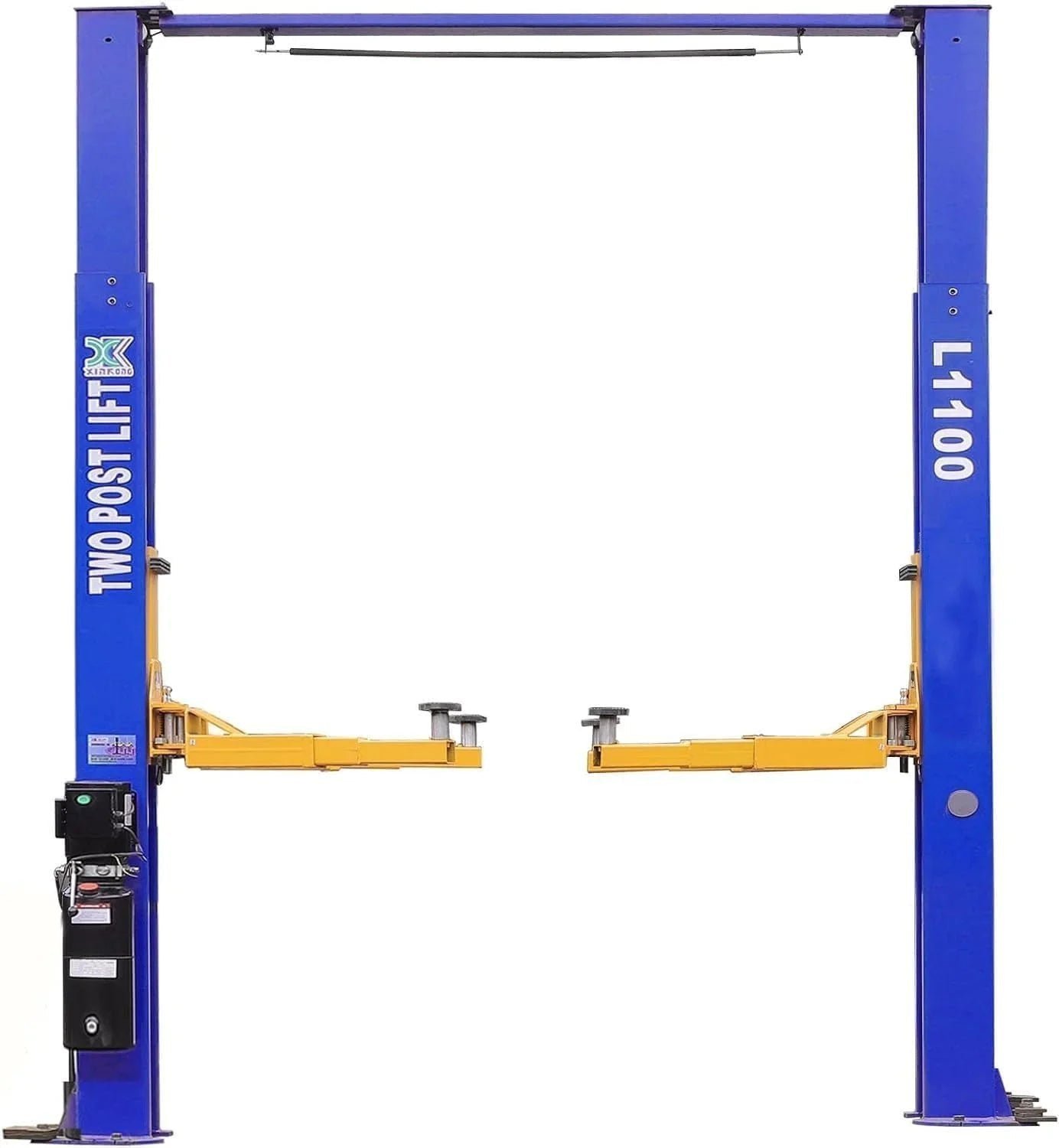

2 Post Car Lift L1100 Auto Truck Hoist 10,000 lb Overhead Clear Floor 220V

Auto Car Lift L1100 220V 60HZ 1PH 3HP MOTOR features Symmetrical Arm Assembly with Straight Front / Rear 2 Stage reach from 30 1/4″ to 49 1/5″ and Equal length of front and rear arm design Drop-in type lifting pads and truck adapters are included.

Features:

Safety Mechanism:

220v Or 110v 60hz 1ph 3hp Motor

Auto Car Lift L 1100

symmetrical Arm Assembly:

Straight Front / Rear 2 Stage Reach From 30 1/4″ To 49 1/5″

Equal Length Of Front And Rear Arm Design

Drop-in Type Lifting Pads And Truck Adapters Included

Safety Mechanism:

Double Point Safety Lock Release
*automatic Arm Lock Restraints
*relief Valve Built In Power Pump To Prevent Overloading
*door Guards Protection Rubber
*up-limit Switch To Protect Cylinders Working Stroke Used In Safe Length Scope
*heavy Duty 5/16″ Diameter Cable And 4.56″ Pulley Reduce High Stress On Synchronization Process And Increase Cable Life
*stiffened Base Plate 5/8″ Thickness
*ultra High Molecular Self Lubricating Nylon Slider Ensures Carriage Smooth Moving Up And Down
*anchor Bolts/mounting Hardware Included

Control System
*lifting Operation By Pressing “Up” Button On Motor
*manual Lowering Operation By Pressing Lever
*relief Valve Built In Power Pump To Prevent Overloading
*1 Sets Truck Adapters Included
*lifting Capacity: 10,000 Lbs
*the Overall Height 145-5/8″
*the Overall Width 133-1/4″
*column Width 10.62″
*base Width 18.89″
*column Thickness Of Steel 3/16″
*carriage Thickness Of Steel 15/64″
*arms Thickness Of Steel 15/64″
*front Arm 30.7″ To 48″
*rear Arm 30.7″ To 48″
*min Pad Height: 3-7/8″
*lift Height Max: 78-7/8″
*drive-thru Width Clearance: 100″
*time To Full Rise: 20-60 Sec
*shipping Weight: 1460 Lbs
