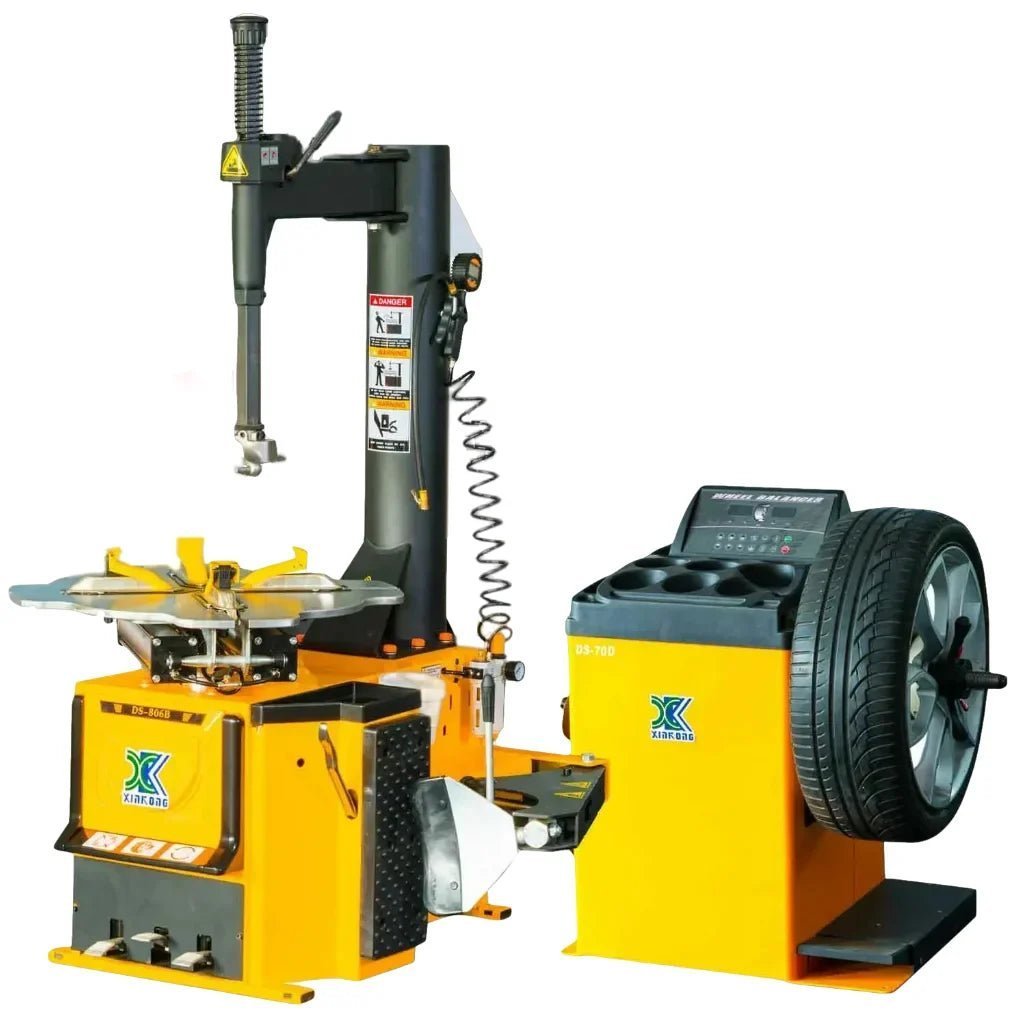

1.5 HP Tire Changer Wheel Balancer Machine Combo Rim Clamp 14″-28″

Product details

Tire Changer 806B Features:

1.Economical and practical type.

2.Piston of spade cylinder is high density aluminum casting to prolong its service lift.

3.The clamping jaw is made of precision steel cast which is firm and durable.

4.Optional motorcycle adapter.

5.Enhanced inner box structure can avoid mechanical deformation during working to prolong its service life.

6.Clamping jaw is equipped with a protective sleeve to provide more comprehensive protection for the tires and rims.

– Air Bead Blaster Function

– Power supply: 110V

– Motor power: 110V

– Rim clamp from inside:14″-26″

– Rim clamp from outside:12″-28″

– Max wheel diameter: 46″

– Max tire width: 3″-14″

– Bead-breaker force: 2500kgf

– Operating pressure: 8-10 bar

– Weight: 536 lbs

WHEEL BALANCER MACHINE 70D FEATURES:

1.With automatic static program and dynamic program, ALU program.

2.With external and internal data set arm, simple operation, measurement accuracy.

3.With a variety of balancing program, suitable for different wheel structure.

4.HTD program, split to hide weight behind spokes.

5.OPT program wheel vs rim optimization.

6.Foot brake positioning at unbalanced point, improve the balancing accuracy.

7.With fault diagnosis system to check the working status of key components, easy to detect and solve the problem.

WHEEL BALANCER TECHNICAL PARAMETER:

Rim diameter: 10″-24″

Max tire diameter: 39″

Tire width; 1.5″-16″

Max tire weight: 154 lb

Packing size: 980x 700x 1050 mm

Rotation speed: 200 r/min

Balancer precision: +-1g

Motor: 110V

Gross weight: 269 lb
